Sealion A4

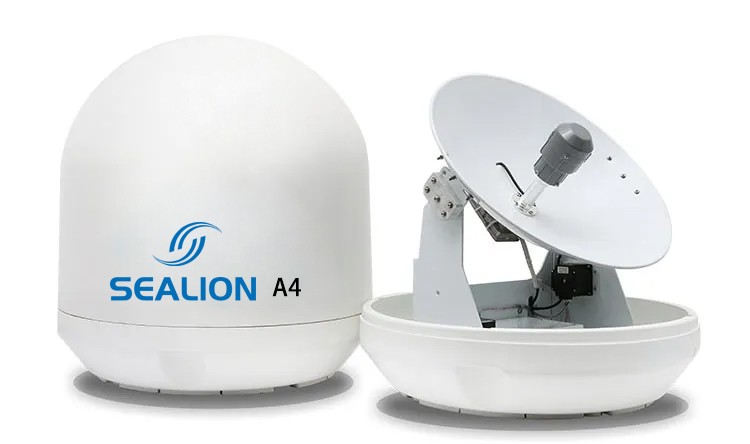

Sealion A4 44cm Ku band marine tv antenna
Sealion A4 is a small marine satellite TV antenna, which has good satellite signal reception capability with a 44cm (17.3”) reflector.

PDF

Product Description:

Sealion A4 is a small marine satellite TV antenna, which has good satellite signal reception capability with a 44cm (17.3”) reflector.
It is widely used in China's coastal land and rivers, Xisha, most of South Korea, China Taiwan and other regions with satellite EIRP more than 48 dBW, and it is ideal to receive signal from Chinasat 9.

Radome dimension(WxH)	4956.8cm (19.322.4 inch)
Reflector diameter	44cm (17.3 inch)
Weight	11.0kg (24.2 lbs)
Radom colour	White
Radom material	ASA
Environmental humidity	0-95%
Operating temp. range	-20~60℃
Platform	2-axis stabilized, 2-axis tracking
AZ range/ tracking rate	0°～680°/ ±20°@4S
EL range/ tracking rate	5°~95°/ ±20°@4S
Initial lock	≤1Min
Input frequency	11700~12900MHz
RX gain	33.4dBi
Power input	AC 110~240V
Min. EIRP	48dBW
Polarization	Circular polarization
Antenna type	Ring focus rear feed antenna
