Sealion KA50

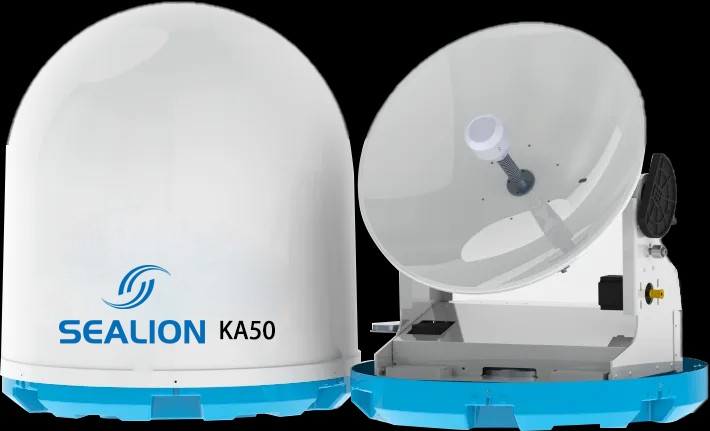

SealionKA50 50cm Ka-Band 2-axis stabilized maritime VSAT antenna
Featuring a compact size and lightweight design, SealionKA50 maritime VSAT satellite communication antenna system is ideal for both smaller vessels with space constraints and bigger vessels.

PDF

Product Description:

Featuring a compact size and lightweight design, SealionKA50 maritime VSAT satellite communication antenna system is ideal for both smaller vessels with space constraints and bigger vessels. With its 5 patent technologies, KA50 offers superior tracking performance to users. It supports remote control by PC and mobile, video monitoring, broadband, video conference, VoIP and other network applications.

Radome height	68.5cm (26.97 inch)
Radome diameter	61cm (24.02 inch)
Reflector diameter	50cm (19.68 inch)
Radome color	White/Blue
Radome materials	ASA/ABS+PC
Weight	25kg (55.12 lbs)
Environmental humidity	0 ~ 95%
Operating temp. range	-20℃ ~ 60℃
Waterproofing grade	IP56
Satellite band	Ka-Band
Antenna type	Ring focus rear feed antenna
ACU size	33021044.5mm
Packing materials	Carton with pallet
Stabilization forms	2-axis stabilized: Azimuth, Elevation
Tracking forms	2-axis tracking: Azimuth, Elevation
Tracking & location mode	Bulit-in inertial guidance & BD/GPS
AZ range/ tracking rate	Unlimited/ ±8°@15S
EL range/ tracking rate	0°～110°/ ±15°@5S
Initial lock	≤1.5Min
Re-lock after break lock time	Break lock＜1Min; Re-lock＜1Min Break lock≥1Min; Re-lock＜2Min
Tracking brake system	Azimuth, Elevation
TX frequency	29.0~30.0GHz (Ka-Band)
TX gain	≥41.1dBi (29.5GHz)
RX frequency	19.0~20.2GHz (Ka-Band)
RX gain	≥38.0dBi (19.4GHz)
G/T	13.4dB/K (Clear sky, 30° Elevation )
Power input	AC 100V～240V/ 50Hz
Power output	DC 24V
Static power	35W (Without BUC power)
Dynamic power	45W (Without BUC power)
BUC power	4W/ 5W/ 10W (Optional)
LNB	Ka-Band LNB (L.O. 16.75/ 17.35/ 17.65/ 18.05GHz)
Axial ratio	≤1.5
Polarization	Circular polarization
Min. EIRP	52.4 dBW typ. @ 29.5 GHz
