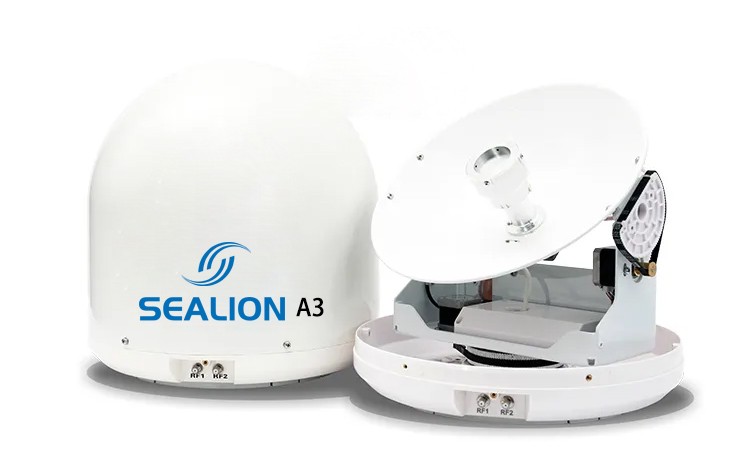

Sealion A3 33cm Ku band marine tv antenna Sealion A3 is a small marine satellite TV antenna, which has good satellite signal reception capability with a 33cm (13.0”) reflector.
Sealion A3 is a small marine satellite TV antenna, which has good satellite signal reception capability with a 33cm (13.0”) reflector.
It is widely used for coastal China land and rivers with satellite EIRP no less than 51 dBW, and it is ideal to receive signal from Chinasat 9. Ditel A3 is suitable for transport ship, yatchs, fishing boat and so on.
| Radome dimension(WxH) | 38.6*41.2cm (15.2*16.2 inch) |
| Reflector diameter | 33cm (13.0 inch) |
| Weight | 5.0kg (11 lbs) |
| Radom colour | White |
| Radom material | ASA |
| Environmental humidity | 0-95% |
| Operating temp. range | -20~60℃ |
| Platform | 2-axis stabilized, 2-axis tracking |
| AZ range/ tracking rate | 0°～680°/ ±20°@4S |
| EL range/ tracking rate | 10°~90°/ ±20°@4S |
| Initial lock | ≤1Min |
| Input frequency | 11700~12900MHz |
| RX gain | 31.6dBi |
| Power input | AC 110~240V |
| Min. EIRP | 51dBW |
| Polarization | Circular polarization |
| Antenna type | Ring focus rear feed antenna |
