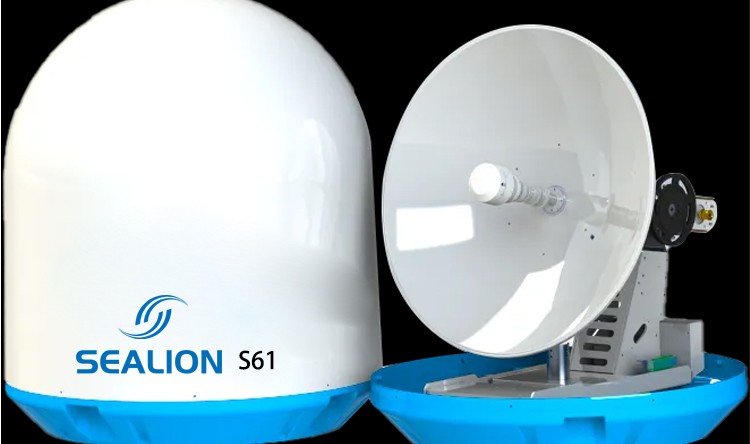

Sealion S61

Sealion S61 65cm Ku band marine TV systems
The Sealion S61 marine TV systems offers one of the highest signal strength available with a 65cm (25.59”) reflectors, significantly increasing the coverage area.

PDF

Product Description:

Sealion S61 marine TV systems offers one of the highest signal strength available with a 65cm (25.59”) reflectors, significantly increasing the coverage area.It is widely used in anywhere in the world as long as the area of Minimum EIRP is over 46dBW. 3-axis is preferred in the vicinity of the equator.

Radome dimension(WxH)	7585cm (29.533.46 inch)
Reflector diameter	65cm (25.59 inch)
Weight	45kg (99 lbs)
Radom colour	White/Blue
Radom material	ASA/ABS
Environmental humidity	0-95%
Operating temp. range	-20~70℃
Platform	3-axis stabilized, 4-axis tracking
AZ range/ tracking rate	0°～680°/ ±8°@15S
EL range/ tracking rate	-10°~105°/ ±20°@5S
Roll range/ tracking rate	±30°/ ±20°@5S
Skew range/ tracking rate	±167.5°/ ±20°@5S
Initial lock	≤2Min
Input frequency	10700~13400MHz
RX gain	36.7dBi (12.5GHz)
Power input	AC 100~240V
Min. EIRP	46dBW
Polarization	Linear polarization
Antenna type	Ring focus rear feed antenna
