SEALION V101

SEALION-V101

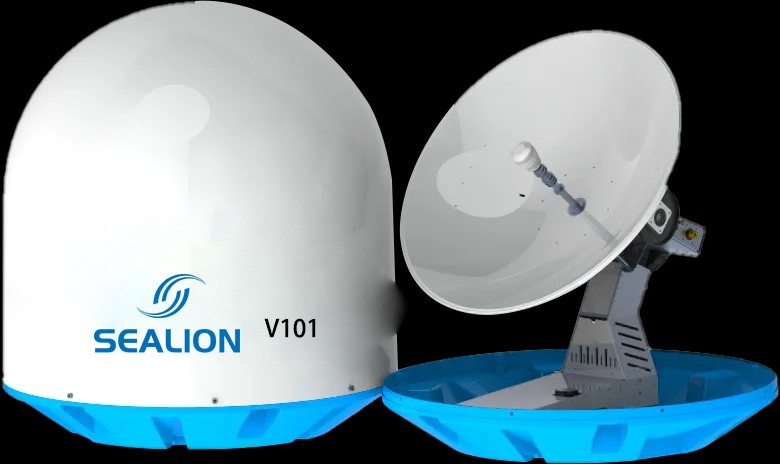

sealion V101 is a 105cm Ku-band maritime VSAT antenna system ideal for global commercial vessels.

PDF

Product Description:

V101 is a 105cm Ku-band maritime VSAT antenna system ideal for global commercial vessels, offshore vessels, oil and gas platform etc. With its 3-axis stabilized platform and 5 patent technology, V101 offers superior high tracking performance, supporting video monitor, broadband access, web television, remote video conference and VoIP services. By selecting different satellite, V101 can offer service to deep ocean vessels which have high request on broadband.

Radome dimension(WxH)	128.5139.5cm (50.654.9 inch)
Reflector diameter	105 cm (41.3 inch )
Weight	100kg (220 lbs)
Operating temp. range	-20~60℃
Platform	3-axis stabilized, 4-axis tracking
AZ range/ tracking rate	Unlimited/ ±6°@15S
EL range/ tracking rate	-15° ~115°/ ±20°@5S
Roll range/ tracking rate	±35°/ ±20°@5S
Skew range/ tracking rate	±167.5°/ ±20°@5S
Initial lock	≤1.5Min
Re-lock after break lock time	Break lock＜1Min; Re-lock＜1Min
Re-lock after break lock time	Break lock≥1Min; Re-lock＜2Min
TX frequency	13.75~14.5GHz
TX gain	41.9dBi (14.25GHz)
RX frequency	10.7~12.75GHz (Ku-band)
RX gain	40.8dBi (12.5GHz)
G/T	18.4dB/K (Clear sky, 30° Elevation)
Power input	AC100~240V /50Hz
Min. EIRP	42dBW
Polarization	Linear polarization
Cross-POL isolation	＞30dB
Antenna type	Ring focus rear feed antenna
LNB	Ku-Band LNB (L.O. 9.75/10.6/11.3GHz)
