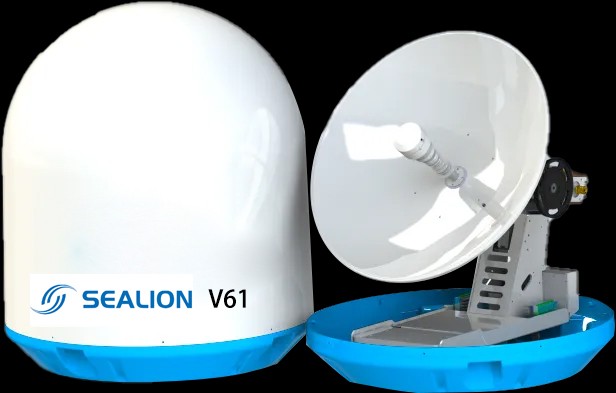

SEALON V61

Featuring a compact size and lightweight design, SEALON-V61 is a 65cm Ku-band maritime VSAT antenna system ideal for smaller vessels with space constraints.

Product Description:

Featuring a compact size and lightweight design,SEALION V61 is a 65cm Ku-band maritime VSAT antenna system ideal for smaller vessels with space constraints.
With its 3-axis stabilized platform and 5 patent technology, V61 offers superior tracking performance to users. The 5 patents make sealion V61 performs super high tracking effiency with 65cm dish while other antennas need 90cm dish at least. 3-axis is preferred in the vicinity of the equator.

Radome dimension(WxH)	7585cm (29.7833.46 inch)
Reflector diameter	65cm (25.59 inch )
Weight	45kg (99 lbs)
Operating temp. range	-20~60℃
Platform	3-axis stabilized , 4-axis tracking
AZ range/ tracking rate	Unlimited/ ±8°@15S
EL range/ tracking rate	-10° ~ 105°/ ±20°@5S
Roll range/ tracking rate	±30°/ ±20°@5S
Skew range/ tracking rate	±167.5°/ ±20°@5S
Initial lock	≤1.5Min
Re-lock after break lock time	Break lock＜1Min; Re-lock＜1Min
Re-lock after break lock time	Break lock≥1Min; Re-lock＜2Min
TX frequency	13.75~14.5GHz
TX gain	37.8dBi (14.25GHz)
RX frequency	10.7~12.75GHz (Ku-band)
RX gain	36.7dBi (12.5Ghz)
G/T	14.2dB/K (Clear sky, 30° Elevation)
Power input	AC 100～240V
Min. EIRP	46dBW
Polarization	Linear polarization
Cross-POL isolation	＞30dB
Antenna type	Ring focus rear feed antenna
LNB	KU band LNB
