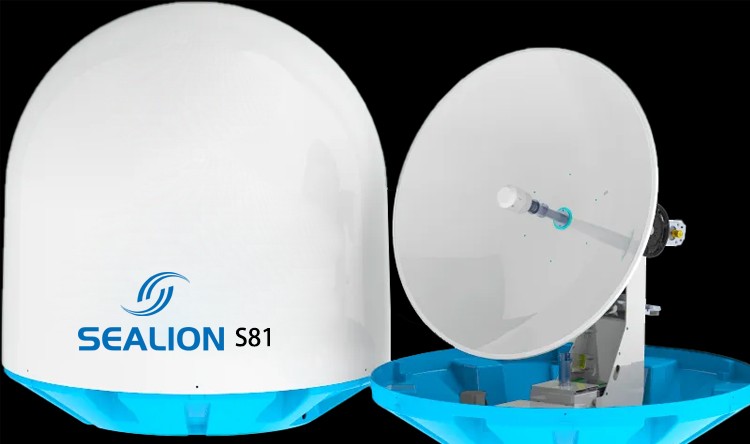

Sealion S81

Sealion S81 83cm Ku band satellite TV antenna for yachts and boats
Sealion S81 is a marine satellite TV antenna system that has excellent satellite signal reception capability with a 83cm  (32.70”) reflector.

PDF

Product Description:

Sealion S81 is a marine satellite TV antenna system that has excellent satellite signal reception capability with a 83cm (32.70”) reflector. With Pre-programmed satellite datebase, users can select satellite via PC or Phone APP after connected with the USB, Wifi interface design ACU. It is widely used in anywhere in the world as long as the area of Minimum EIRP is over 44dBW. 3-axis is preferred in the vicinity of the equator.

Radome dimension(WxH)	104.6102cm (41.1840.16 inch)
Reflector diameter	83cm (32.7 inch )
Weight	55kg (121.2 lbs)
Radom colour	White/Blue
Radom material	ASA/SMC
Environmental humidity	0-95%
Operating temp. range	-20 ~ 70℃
Platform	3-axis stabilized, 4-axis tracking
AZ range/ tracking rate	0°～680°/ ±8°@15S
EL range/ tracking rate	-10°~110°/ ±20°@6S
Roll range/ tracking rate	±35°/ ±20°@6S
Skew range/ tracking rate	±167.5°/ ±20°@6S
Initial lock	≤2Min
RX frequency	10.7~12.75GHz (Ku-band)
Min. EIRP	44dBW
Polarization	Linear polarization
Antenna type	Ring focus antenna
