Sealion A60

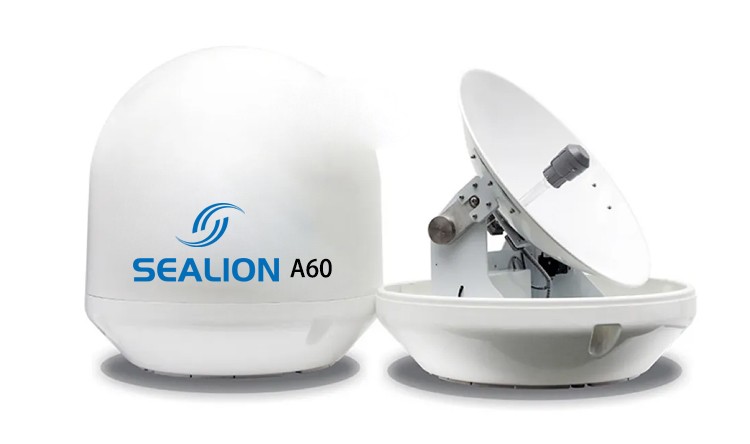

Sealion A60 63cm Ku band marine TV antenna
Sealion A60 is a marine satellite TV antenna, which has good satellite signal reception capability with a 63cm (24.80”) reflector.

PDF

Product Description:

Sealion A60 is a marine satellite TV antenna, which has good satellite signal reception capability with a 63cm (24.80”) reflector.
It is widely used in China's coastal land and rivers, Xisha, most of South Korea, China Taiwan and other regions with satellite EIRP more than 47 dBW, and it is ideal to receive signal from Chinasat 9.

Radome dimension(WxH)	7075.8cm (27.529.8 inch)
Reflector diameter	63cm (24.8 inch)
Weight	21.5kg (47.3 lbs)
Radom colour	White/Blue
Radom material	ASA/ABS
Environmental humidity	0-95%
Operating temp. range	-20~70℃
Platform	2-axis stabilized, 2-axis tracking
AZ range/ tracking rate	0°～680°/ ±8°@15S
EL range/ tracking rate	0°~95°/ ±20°@4S
Initial lock	≤1Min
Input frequency	10700~13400MHz
RX gain	36.2dBi
Power input	AC 110~240V
Min. EIRP	47dBW
Polarization	Circular polarization
Antenna type	Ring focus rear feed antenna
