SEALION V60

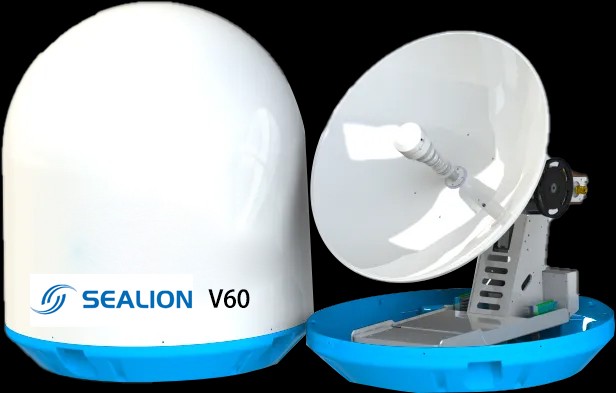

SEALION V60 63cm Ku band 2-axis stablilized marine VSAT antenna
Featuring a compact size and lightweight design, Sealion V60 is a 63cm Ku-band maritime VSAT antenna internet for boats ideal for smaller vessels with space constraints.

PDF

Product Description:

Featuring a compact size and lightweight design,Sealion V60 is a 63cm Ku-band maritime VSAT antenna internet for boats ideal for smaller vessels with space constraints.
With its 2-axis stabilized platform and 5 patent technology, V60 offers superior tracking performance to users.The 5 patents make SealionV60 performs super high tracking effiency with 63cm dish while other antennas need 90cm dish at least.

Radome dimension(WxH)	7583.8cm (29.533.0inch)
Reflector diameter	63cm (24.8inch )
Weight	30kg(66.1lbs)
Operating temp. range	-20~60℃
Platform	2-axis stabilized , 3-axis tracking
AZ range/ tracking rate	Unlimited/ ±8°@15S
EL range/ tracking rate	-15° ~ 95°/ ±15°@5S
Skew range/ tracking rate	±167.5°/ ±15°@5S
Initial lock	≤1Min
Re-lock after break lock time	Break lock＜1Min; Re-lock＜1Min
Re-lock after break lock time	Break lock≥1Min; Re-lock＜2Min
TX frequency	13.75~14.5GHz
TX gain	37.6dBi (14.25Ghz)
RX frequency	10.7~12.75GHz (Ku-band)
RX gain	36.4dBi (12.5Ghz)
G/T	14.2dB/K (Clear sky, 30° Elevation )
Power input	AC100~240V /50Hz
Min. EIRP	46dBW
Polarization	Linear polarization
Cross-POL isolation	＞30dB
Antenna type	Ring focus rear feed antenna
LNB	Ku-Band LNB (L.O. 9.75/10.6/11.3GHz)
