Sealion KA60

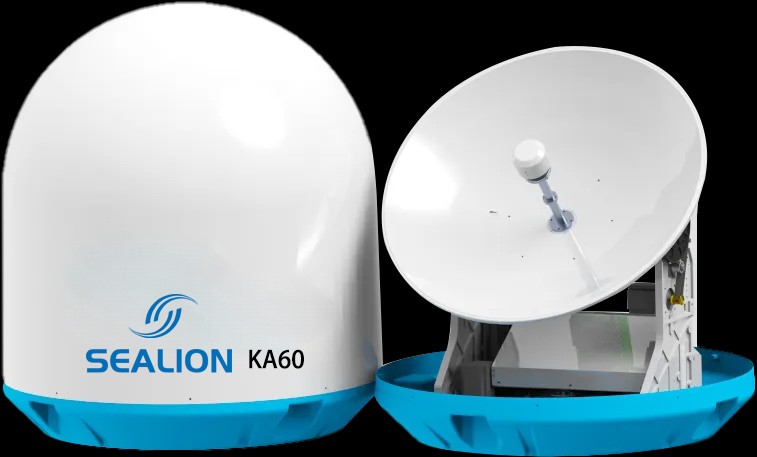

Sealion KA60 65cm Ka-Band 2-axis stabilized maritime VSAT antenna
Featuring a compact size and lightweight design, sealion KA60 maritime VSAT satellite communication antenna system is ideal for both smaller vessels with space constraints and bigger vessels.

PDF

Product Description:

Featuring a compact size and lightweight design, SealionKA60 maritime VSAT satellite communication antenna system is ideal for both smaller vessels with space constraints and bigger vessels. With its 5 patent technologies, KA60 offers superior tracking performance to users. It supports remote control by PC and mobile, video monitoring, broadband, video conference, VoIP and other network applications.

Radome height	85cm (33.46 inch)
Radome diameter	75cm (29.50 inch)
Reflector diameter	65cm (25.59 inch )
Radome color	White/Blue
Radome materials	ASA/ABS
Weight	30kg (66.13 lbs)
Environmental humidity	0 ~ 95%
Operating temp. range	-20℃ ~ 60℃
Waterproofing grade	IP56
Satellite band	Ka-Band
Antenna type	Ring focus rear feed antenna
ACU size	33021044.5mm
Packing materials	Carton with pallet
Stabilization forms	2-axis stabilized: Azimuth, Elevation
Tracking forms	2-axis tracking: Azimuth, Elevation
Tracking & location mode	Bulit-in inertial guidance & BD/GPS
AZ range/ tracking rate	Unlimited/ ±8°@15S
EL range/ tracking rate	-5°～95°/ ±15°@5S
Initial lock	≤1.5Min
Re-lock after break lock time	Break lock＜1Min; Re-lock＜1Min Break lock≥1Min; Re-lock＜2Min
Tracking brake system	Azimuth, Elevation
TX frequency	29.0~30.0GHz (Ka-Band)
TX gain	≥44.3dBi (29.5GHz)
RX frequency	17.8~20.2GHz (Ka-Band)
RX gain	≥40.5dBi (19.4GHz)
G/T	15.9dB/K (Clear sky, 30° Elevation )
Power input	AC 100V～240V/ 50Hz
Power output	DC 24V
Static power	40W (Without BUC power)
Dynamic power	50W (Without BUC power)
BUC power	4W/ 5W/ 10W (Optional)
LNB	Ka-Band LNB (L.O. 16.75/ 17.35/ 17.65/ 18.05GHz)
Axial ratio	<1.5dB
Polarization	Circular polarization
Min. EIRP	50.4 dBW typ. @ 29.5 GHz
